Package A
Open-pit bench blasting, medium holes
HoleØ115-138 mmDepth≤21 m
- Drill rig

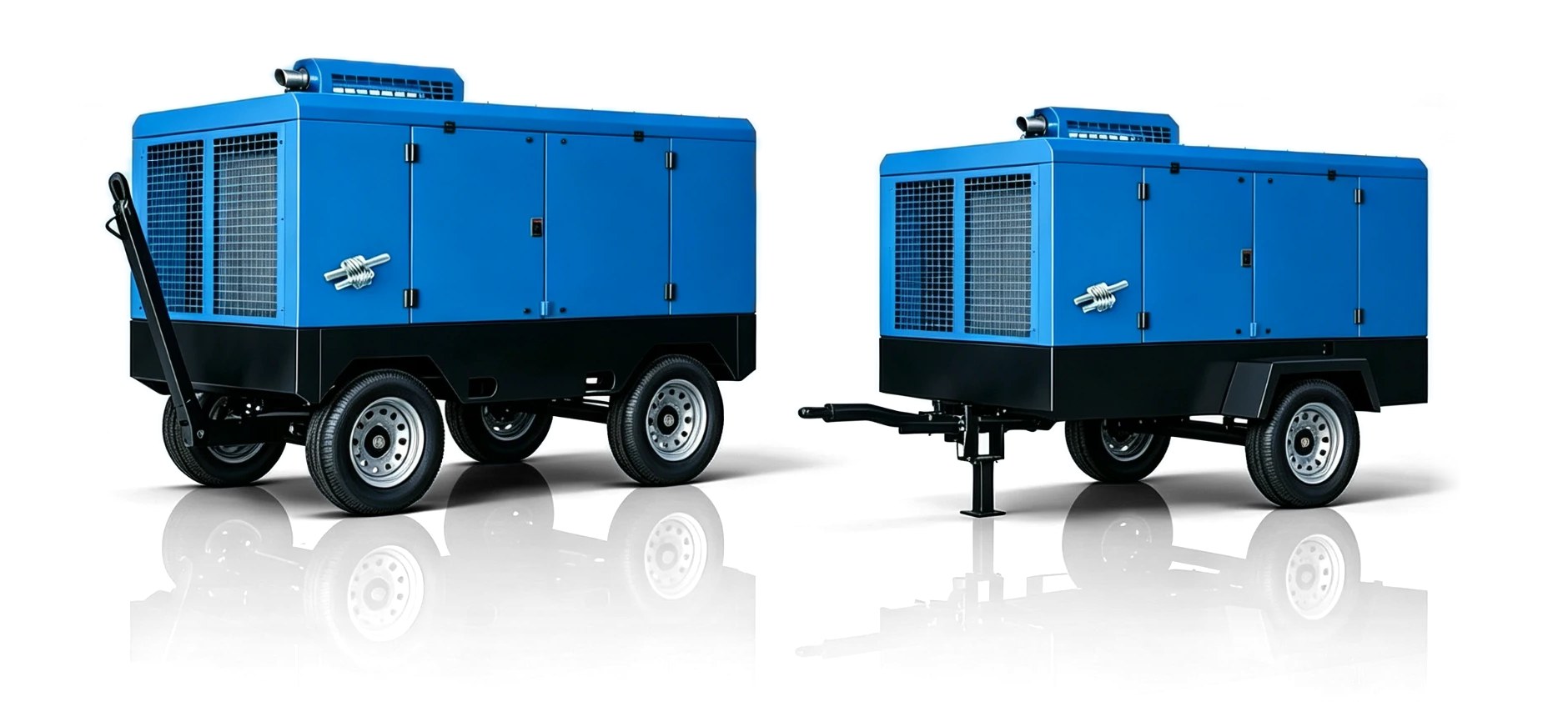

- Air compressor
- DTH hammer
- BitWP-H45-130 FF8
- Drill pipeØ76 mm × 2 m / 3 m
Add the cold-start kit for severe winters.
Quzhou · China
From Bit to Air, One Complete Drilling Package
30 years in drilling tools and compressed air. Drill rigs, portable air compressors and DTH hammers from one supplier, exported to 30+ countries.
Anchoring and support work on a high railway embankment slope
144modelsRigs, compressors and DTH tools in production
30yearsIn drilling tools since 1995
30,000m²Production base
Ø64–600mm8–35barHole range · compressor pressure
ISO 9001Quality management system
In stockSmart warehouse and flexible production line
About Victor Power
We started with the bit. Now we supply the whole drilling set.
Victor Power began in 1995 as a supplier of DTH hammers and bits to mining and construction contractors, and has served more than 1,000 companies since. Three decades of matching tools to rock taught us that a drilling job succeeds or fails on how well the hammer, the air supply and the rig work together.
Today we build that whole set under one name: WPYX drill rigs, WPCY diesel and WPDY electric portable screw compressors, WP-H / WP-M series DTH hammers and bits, and WP-DP series drill pipes.
01
Start from the bit
We fix the hole diameter and hammer first, size the compressor to the hammer’s air consumption and pressure, then choose the rig.
02
One supplier for all three
Connections, pressure and air flow are matched before shipping, so nothing on site has to compromise.
03
Three options per job
For each application we offer three configurations by rock type and hole depth. You choose by budget.
Applications
Seventeen jobs, each with its own package
Pick your application to see three matched configurations below.
Mining & Quarrying
2Construction & Infrastructure
703
Road construction
Rock blasting and cuttings for mountain roads, with frequent moves.
Ø64–138 mm · ≤21 mSee packages →04Tunneling
Drilling, rock bolting and mucking in turn. Low pressure, high flow.
10 bar classSee packages →05Slope anchoring
Anchor and cable holes in broken ground with casing, long air lines and pressure loss.
Ø115–254 mm · ≤60 mSee packages →06Bridge piling
DTH hammer piling and casing drilling: large holes, deep into rock.
Ø254–600 mmSee packages →07Foundation drilling
Anchor, grouting and blow-out holes for dam foundations and caverns.
Ø90–178 mm · ≤60 mSee packages →08Power line tower foundations
Rock anchor and rock-socket foundations at mountain tower sites, where equipment often goes in by parts.
Ø90–254 mm · ≤15 mSee packages →09Pipeline trenching in rock
Trench blasting along oil, gas and water pipelines: shallow holes, high volume, constant moves.
Ø64–115 mm · ≤6 mSee packages →Water, Energy & Renewables
410
Water well drilling
Rock, sand and weathered zones. High pressure for drilling, high flow for well flushing.
Ø140–190 mm · ≤300 mSee packages →11Geothermal drilling
From heat-pump boreholes to deep wells, with pressure sized to depth and water back-pressure.
Ø140–254 mm · 100–300 m+See packages →12Solar pile drilling
Rock and gravel where pile drivers stop. Drill the hole first, then set the pile.
Ø150–250 mm · ≤10 mSee packages →13Wind turbine foundations
Rock anchors and rock-socket piles for mountain wind farms: many holes, large diameters.
Ø140–305 mm · ≤30 mSee packages →Site & Plant Air
414
Sandblasting
Ship blocks and steel structures need high flow for hours on end.
8–10 barSee packages →15Shotcrete
Sprayed concrete support. Low pressure, high flow.
8–10 barSee packages →16Cable blowing
Fibre cable installation. City night work needs low noise.
8–10 barSee packages →17Factory air
Fixed air supply for workshops, production lines and cement plants; electric where there is grid power.
10–18 bar, electricSee packages →Solutions
Three matched packages for every job
Each package pairs the hammer with a compressor that covers its air consumption at working pressure, then the rig and drill pipe to match.
Open-pit and underground mining
Configured for power supply, climate and rock: cold, high altitude, heavy cuttings.
Package B
Open pit, large holes, heavy rock such as iron ore
HoleØ140-165 mmDepth≤21 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-152 CC8
- Drill pipeØ89 mm × 2 m / 3 m
Heavy cuttings: air flow sized up for flushing velocity.
Package C
Site power available, or high-altitude mines
HoleØ115-152 mmDepth≤21 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H45-130 FF8
- Drill pipeØ76 mm × 2 m / 3 m
Electric output does not drop with altitude.
Quarrying
Bench blasting for stone and aggregate, balancing drilling speed, tool wear and cost.
Package A
Small quarries and aggregate
HoleØ90-115 mmDepth≤21 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H35G-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
Separated rig, low investment.
Package B
Medium quarries, granite and limestone
HoleØ115-138 mmDepth≤28 m
- Drill rig
- Air compressorBuilt into the rig · 22bar 18m³/min
- DTH hammer
- BitWP-H45-127 FF8
- Drill pipeØ76 mm × 2 m / 3 m
The usual step up from separated to automatic rigs.
Package C
Large quarries, hard rock
HoleØ140-152 mmDepth≤25 m
- Drill rig
- Air compressorBuilt into the rig · 22bar 20m³/min
- DTH hammer
- BitWP-H55K-146 CC8
- Drill pipeØ89 mm × 2 m / 3 m
Keeps 20 bar drilling pressure in hard rock at Ø138 mm.
Road construction
Rock blasting and cuttings for mountain roads, with frequent moves.
Package A
Ditches and small rock volumes
HoleØ64-89 mmDepth≤17 m
- Drill rig
- Air compressorBuilt into the rig · 8.5bar 4.7m³/min
- DTH hammerTop hammer rods and bits
Hydraulic top hammer: fast in small holes.
Package B
Rock blasting for mountain road beds
HoleØ90-115 mmDepth≤21 m
- Drill rig
- Air compressorBuilt into the rig · 18bar 12m³/min
- DTH hammer
- BitWP-H35-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
Fits in a 20 ft container.
Package C
Large cuttings
HoleØ115-138 mmDepth≤21 m
- Drill rig
- Air compressorBuilt into the rig · 18bar 17m³/min
- DTH hammer
- BitWP-H45-127 FF8
- Drill pipeØ76 mm × 2 m / 3 m
Frequent moves, strong off-road ability.
Tunneling
This application needs air only. Three sizes by demand:
Package A
Single face, rock drills and breakers
- Air compressor
Use electric when site power is available.
Package B
Several faces, drilling and shotcrete
- Air compressor
Low pressure, high flow.
Package C
Large section, drilling, bolting and mucking in parallel
- Air compressor × 2
Several units in parallel, started and stopped as faces change.
Slope anchoring
Anchor and cable holes in broken ground with casing, long air lines and pressure loss.
Package A
Soil and broken rock, with casing
HoleØ115-130 mmDepth≤30 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H45-127 FF8
- Drill pipeØ76 mm × 2 m / 3 m
Railway and highway embankment slopes.
Package B
Rock slope anchor cables
HoleØ140-152 mmDepth30-60 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-146 CC8
- Drill pipeØ89 mm × 2 m / 3 m
Compressor parked at the slope foot: sized one step up for line loss.
Package C
Large anchors and jet-grouting piles
HoleØ165-254 mmDepth30-60 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H65-178 CC8
- Drill pipeMatched to rig
Above Ø190 mm, switch to the WP-H85 hammer.
Bridge piling
DTH hammer piling and casing drilling: large holes, deep into rock.
Package A
Rock-socketed piles, medium diameter
HoleØ254-305 mmDepth≤30 入岩 m
- Drill rig
- Air compressor
- DTH hammer
- BitØ254-305 Matching bit
- Drill pipeMatched to rig
One compressor at 17–20 bar; two in parallel for hard rock or deep sockets.
Package B
Large-diameter rock sockets
HoleØ305-400 mmDepth≤30 入岩 m
- Drill rigYour own rig (Victor supplies air and tools)
- Air compressor × 2
- DTH hammer
- BitWP-H125-325 CC15
- Drill pipeMatched to rig
Two compressors in parallel.
Package C
Extra-large diameter
HoleØ450-600 mmDepth≤30 入岩 m
- Drill rigYour own rig (Victor supplies air and tools)
- Air compressor × 2
- DTH hammer
- BitWP-H180-530 CC24
- Drill pipeMatched to rig
Two units in parallel at 17 bar; three if you need higher pressure.
Foundation drilling
Anchor, grouting and blow-out holes for dam foundations and caverns.
Package A
Overburden, weathered or soft rock
HoleØ90-105 mmDepth≤30 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H35-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
Grouting and blow-out holes on small work faces.
Package B
Medium-hard rock, anchoring and consolidation grouting
HoleØ115-152 mmDepth30-60 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-140 CV7
- Drill pipeØ89 mm × 2 m / 3 m
Dam foundation and cavern work at the same time.
Package C
Hard rock, deep holes, site power available
HoleØ130-178 mmDepth30-60 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-152 FF8
- Drill pipeØ89 mm × 2 m / 3 m
Electric output does not drop with altitude, and there are no exhaust fumes in caverns.
Power line tower foundations
Rock anchor and rock-socket foundations at mountain tower sites, where equipment often goes in by parts.
Package A
Mountain tower sites, equipment carried in by parts
HoleØ90-105 mmDepth≤12 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H35-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
A light separated rig reaches sites with poor access roads.
Package B
Rock anchor foundations, medium-hard rock
HoleØ115-130 mmDepth≤15 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H45-127 FF8
- Drill pipeØ76 mm × 2 m / 3 m
Many anchor holes per tower; the rig moves between holes quickly.
Package C
Large-diameter rock-socket foundations
HoleØ195-254 mmDepth≤15 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H85-219 CC10
- Drill pipeMatched to rig
For heavily loaded towers such as long-span and angle towers.
Pipeline trenching in rock
Trench blasting along oil, gas and water pipelines: shallow holes, high volume, constant moves.
Package A
Shallow trench, small rock volume
HoleØ64-89 mmDepth≤6 m
- Drill rig
- Air compressorBuilt into the rig · 8.5bar 4.7m³/min
- DTH hammerTop hammer rods and bits
Hydraulic top hammer: fast in small holes.
Package B
Trench blasting on long pipelines
HoleØ90-115 mmDepth≤6 m
- Drill rig
- Air compressorBuilt into the rig · 18bar 12m³/min
- DTH hammer
- BitWP-H35-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
Frequent moves along the route, with no separate compressor to tow.
Package C
Poor access along the route, no room for large machines
HoleØ90-115 mmDepth≤6 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H35-105 CV6
- Drill pipeØ60 mm × 2 m / 3 m
Rig and compressor travel separately.
Water well drilling
Rock, sand and weathered zones. High pressure for drilling, high flow for well flushing.
Package A
Shallow wells in rock
HoleØ140-152 mmDepth≤150 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55K-146 CC8
- Drill pipeØ89 mm × 2 m / 3 m
Dual-mode: 25 bar for drilling, switch to 33 m³/min for flushing.
Package B
Sandstone and weathered zones, high water inflow
HoleØ152 mmDepth150-250 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-152 FF8
- Drill pipeØ89 mm × 2 m / 3 m
Every 10 m of water adds about 1 bar back-pressure. Deep wells need 30 bar or more.
Package C
Large-diameter irrigation and municipal wells
HoleØ171-190 mmDepth150-300 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H65-171 CC8
- Drill pipeMatched to rig
Side-shift rotary head makes casing installation easier.
Geothermal drilling
From heat-pump boreholes to deep wells, with pressure sized to depth and water back-pressure.
Package A
Heat-pump boreholes in rock
HoleØ140-152 mmDepth100-150 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-146 FF8
- Drill pipeØ89 mm × 2 m / 3 m
Homes and commercial buildings.
Package B
Medium-depth holes with water inflow
HoleØ146-152 mmDepth150-300 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55K-152 FF8
- Drill pipeØ89 mm × 2 m / 3 m
Rated pressure sized to depth and water back-pressure, with margin.
Package C
Deep geothermal, large diameter
HoleØ203-254 mmDepth>300 m
- Drill rigYour own rig (Victor supplies air and tools)
- Air compressor
- DTH hammer
- BitWP-H85-219 CC10
- Drill pipeMatched to rig
Victor supplies air and tools to match your own rig.
Solar pile drilling
Rock and gravel where pile drivers stop. Drill the hole first, then set the pile.
Package A
Sand and weathered rock, hills and slopes
HoleØ150-171 mmDepth≤10 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H65F-165 CC8
- Drill pipeMatched to rig
Climbs 35° slopes.
Package B
Medium-hard rock
HoleØ171-203 mmDepth≤10 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H75K-190 CC10
- Drill pipeMatched to rig
Where pile drivers cannot go in, drill first, then set the pile.
Package C
Hard rock, large holes, utility-scale plants
HoleØ203-250 mmDepth≤10 m
- Drill rig
- Air compressorBuilt into the rig · 18bar 27m³/min
- DTH hammer
- BitWP-H85-219 CC10
- Drill pipeMatched to rig
Integrated rig with auto rod changer for high-volume projects.
Wind turbine foundations
Rock anchors and rock-socket piles for mountain wind farms: many holes, large diameters.
Package A
Rock anchor foundations, medium-hard rock
HoleØ140-152 mmDepth≤15 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H55-146 CC8
- Drill pipeØ89 mm × 2 m / 3 m
Many anchor holes per turbine; plan shifts by hole count.
Package B
Large anchor holes, hard rock
HoleØ165-190 mmDepth≤25 m
- Drill rig
- Air compressor
- DTH hammer
- BitWP-H65-178 CC8
- Drill pipeMatched to rig
Compressor on the platform with long hoses: one size up for pressure loss.
Package C
Rock-socket pile foundations
HoleØ254-305 mmDepth≤30 入岩 m
- Drill rig
- Air compressor
- DTH hammer
- BitØ254-305 Matching bit
- Drill pipeMatched to rig
In hard rock or deep sockets, two compressors in parallel.
Sandblasting
This application needs air only. Three sizes by demand:
Package A
One blast nozzle
- Air compressor
Add an aftercooler and oil-water separator.
Package B
Two or three nozzles
- Air compressor
Steel structures and bridge coating.
Package C
Shipyard blocks, continuous work
- Air compressor
Electric for long continuous duty where power is available.
Shotcrete
This application needs air only. Three sizes by demand:
Package A
Small wet-mix sprayer
- Air compressor
Sized to spraying volume.
Package B
Tunnel lining and slope protection
- Air compressor
Package C
Several sprayers at once
- Air compressor
Cable blowing
This application needs air only. Three sizes by demand:
Package A
City work at night, power available
- Air compressor
Electric, low noise.
Package B
Field routes without power
- Air compressor
Two-wheel trailer, easy to move.
Package C
Long runs, large ducts
- Air compressor
Factory air
This application needs air only. Three sizes by demand:
Package A
Small workshop: woodworking, metalwork, air tools
- Air compressor
Heavy-duty intake filter for wood dust.
Package B
Production line: plasma cutting, painting, air clamps
- Air compressor
Sized by how many stations run at once.
Package C
Central plant air; cement silo aeration and pneumatic conveying
- Air compressor
Add an air receiver to cover peak demand.
Products
Every model in one table
Search by model, hole size or application. Click a model for full specifications.
Photo coming soon
Photo coming soon
Photo coming soon
| Model | Type | Key figures | Power | Specs |
|---|---|---|---|---|
| WPDY90-13/14.5 | Electric · Single-stage | 13 m³/min @ 14.5 bar | 90kW | Quote |
| WPDY90-16/10 | Electric · Single-stage | 16 m³/min @ 10 bar | 90kW | Quote |
| WPDY132-15/17 | Electric · Single-stage | 15 m³/min @ 17 bar | 132kW | Quote |
| WPDY132-17/13 | Electric · Single-stage | 17 m³/min @ 13 bar | 132kW | Quote |
| WPDY90-18/15 | Electric · Two-stage | 18 m³/min @ 15 bar | 90kW (4-pole) | Quote |
| WPDY110-18/18 | Electric · Two-stage | 18 m³/min @ 18 bar | 110kW (4-pole) | Quote |
| WPDY135-22/18 | Electric · Two-stage | 22 m³/min @ 18 bar | 132kW | Quote |
| WPDY138-23/19 | Electric · Two-stage | 23 m³/min @ 19 bar | 132kW | Quote |
| WPDY138B-23/19 | Electric · Two-stage | 23 m³/min @ 19 bar | 132kW (4-pole) | Quote |
| WPDY139-23/20 | Electric · Two-stage | 23 m³/min @ 20 bar | 132kW | Quote |
| WPDY185-23/24 | Electric · Two-stage | 23 m³/min @ 24 bar | 185kW (4-pole) | Quote |
| WPDY185-26/21 | Electric · Two-stage | 26 m³/min @ 21 bar | 185kW (4-pole) | Quote |
| WPDY185-28/18 | Electric · Two-stage | 28 m³/min @ 18 bar | 185kW (4-pole) | Quote |
| WPDY250-31/25 | Electric · Two-stage | 31 m³/min @ 25 bar | 250kW (4-pole) | Quote |
| WPDY250-33/21 | Electric · Two-stage | 33 m³/min @ 21 bar | 250kW (4-pole) | Quote |
| WPDY250-34/20 | Electric · Two-stage | 34 m³/min @ 20 bar | 250kW (4-pole) | Quote |
| WPDY250-35/18 | Electric · Two-stage | 35 m³/min @ 18 bar | 250kW (4-pole) | Quote |
| WPCY125-9/12K | Diesel · Single-stage | 9 m³/min @ 12 bar | Cummins 125HP | Quote |
| WPCY125-10/10K | Diesel · Single-stage | 10 m³/min @ 10 bar | Cummins 125HP | Quote |
| WPCY125-12/8K | Diesel · Single-stage | 12 m³/min @ 8 bar | Cummins 125HP | Quote |
| WPCY130-9/12K | Diesel · Single-stage | 9 m³/min @ 12 bar | Cummins 130HP | Quote |
| WPCY130-10/10K | Diesel · Single-stage | 10 m³/min @ 10 bar | Cummins 130HP | Quote |
| WPCY130-12/8K | Diesel · Single-stage | 12 m³/min @ 8 bar | Cummins 130HP | Quote |
| WPCY150-10/12 | Diesel · Single-stage | 10 m³/min @ 12 bar | Yuchai 150HP | Quote |
| WPCY150-10/12K | Diesel · Single-stage | 10 m³/min @ 12 bar | Cummins 150HP | Quote |
| WPCY150-12/10 | Diesel · Single-stage | 12 m³/min @ 10 bar | Yuchai 150HP | Quote |
| WPCY150-12/10K | Diesel · Single-stage | 12 m³/min @ 10 bar | Cummins 150HP | Quote |
| WPCY150-13/8 | Diesel · Single-stage | 13 m³/min @ 8 bar | Yuchai 150HP | Quote |
| WPCY150-13/8K | Diesel · Single-stage | 13 m³/min @ 8 bar | Cummins 150HP | Quote |
| WPCY180-15/15K | Diesel · Single-stage | 15 m³/min @ 15 bar | Cummins 180HP | Quote |
| WPCY180-15/14K | Diesel · Single-stage | 15 m³/min @ 14 bar | Cummins 180HP | Quote |
| WPCY180-15/16 | Diesel · Single-stage | 15 m³/min @ 16 bar | Yuchai 180HP | Quote |
| WPCY180-16/13K | Diesel · Single-stage | 16 m³/min @ 13 bar | Cummins 180HP | Quote |
| WPCY180-16/15 | Diesel · Single-stage | 16 m³/min @ 15 bar | Yuchai 180HP | Quote |
| WPCY180-18/12 | Diesel · Single-stage | 18 m³/min @ 12 bar | Yuchai 180HP | Quote |
| WPCY190-15/16 | Diesel · Single-stage | 15 m³/min @ 16 bar | Yuchai 190HP | Quote |
| WPCY190-16/15 | Diesel · Single-stage | 16 m³/min @ 15 bar | Yuchai 190HP | Quote |
| WPCY190-18/12 | Diesel · Single-stage | 18 m³/min @ 12 bar | Yuchai 190HP | Quote |
| WPCY205-18/18K | Diesel · Single-stage | 18 m³/min @ 18 bar | Cummins 205HP | Quote |
| WPCY220-18/18-20/15 | Diesel · Single-stage · Dual-mode | 18 m³/min @ 18 bar / 20 m³/min @ 15 bar | Yuchai 220HP | Quote |
| WPCY220-18/18K | Diesel · Single-stage | 18 m³/min @ 18 bar | Cummins 220HP | Quote |
| WPCY260-19/18 | Diesel · Single-stage | 19 m³/min @ 18 bar | Yuchai 260HP | Quote |
| WPCY260-19/19-20/15K | Diesel · Single-stage · Dual-mode | 19 m³/min @ 19 bar / 20 m³/min @ 15 bar | Cummins 260HP | Quote |
| WPCY260-19/19K | Diesel · Single-stage | 19 m³/min @ 19 bar | Cummins 260HP | Quote |
| WPCY260-20/18K | Diesel · Single-stage | 20 m³/min @ 18 bar | Cummins 260HP | Quote |
| WPCY190-15/18-17/13 | Diesel · Two-stage · Dual-mode | 15 m³/min @ 18 bar / 17 m³/min @ 13 bar | Yuchai 190HP | Quote |
| WPCY220-20/18-22/15 | Diesel · Two-stage · Dual-mode | 20 m³/min @ 18 bar / 22 m³/min @ 15 bar | Yuchai 220HP | Quote |
| WPCY220-20/18-22/15K | Diesel · Two-stage · Dual-mode | 20 m³/min @ 18 bar / 22 m³/min @ 15 bar | Cummins 220HP | Quote |
| WPCY220B-19/18-21/15 | Diesel · Two-stage · Dual-mode | 19 m³/min @ 18 bar / 21 m³/min @ 15 bar | Yuchai 220HP | Quote |
| WPCY240-19/21-21/15 | Diesel · Two-stage · Dual-mode | 19 m³/min @ 21 bar / 21 m³/min @ 15 bar | Yuchai 240HP | Quote |
| WPCY240-19/21-23/15 | Diesel · Two-stage · Dual-mode | 21 m³/min @ 19 bar / 23 m³/min @ 15 bar | Yuchai 240HP | Quote |
| WPCY240-21/19-23/15 | Diesel · Two-stage · Dual-mode | 21 m³/min @ 19 bar / 23 m³/min @ 15 bar | Yuchai 240HP | Quote |
| WPCY260-19/22 | Diesel · Two-stage | 19 m³/min @ 22 bar | Yuchai 260HP | Quote |
| WPCY260-19/23-21/16 | Diesel · Two-stage · Dual-mode | 19 m³/min @ 23 bar / 21 m³/min @ 16 bar | Yuchai 260HP | Quote |
| WPCY260-21/21 | Diesel · Two-stage | 21 m³/min @ 21 bar | Yuchai 260HP | Quote |
| WPCY260-21/21-23/15 | Diesel · Two-stage · Dual-mode | 21 m³/min @ 21 bar / 23 m³/min @ 15 bar | Yuchai 260HP | Quote |
| WPCY260-21/21-23/16K | Diesel · Two-stage · Dual-mode | 21 m³/min @ 21 bar / 23 m³/min @ 16 bar | Cummins 260HP | Quote |
| WPCY260-21/21K | Diesel · Two-stage | 21 m³/min @ 21 bar | Cummins 260HP | Quote |
| WPCY260-22/19 | Diesel · Two-stage | 22 m³/min @ 19 bar | Yuchai 260HP | Quote |
| WPCY260-22/19-24/15K | Diesel · Two-stage · Dual-mode | 22 m³/min @ 19 bar / 24 m³/min @ 15 bar | Cummins 260HP | Quote |
| WPCY260-22/19K | Diesel · Two-stage | 22 m³/min @ 19 bar | Cummins 260HP | Quote |
| WPCY260-24/15-22/19 | Diesel · Two-stage · Dual-mode | 24 m³/min @ 15 bar / 22 m³/min @ 19 bar | Yuchai 260HP | Quote |
| WPCY260-24/18K | Diesel · Two-stage | 24 m³/min @ 18 bar | Cummins 260HP | Quote |
| WPCY310-23/20-25/15 | Diesel · Two-stage · Dual-mode | 23 m³/min @ 20 bar / 25 m³/min @ 15 bar | Yuchai 310HP | Quote |
| WPCY310-24/22-26/16 | Diesel · Two-stage · Dual-mode | 24 m³/min @ 22 bar / 26 m³/min @ 16 bar | Yuchai 310HP | Quote |
| WPCY325-24/22-26/18K | Diesel · Two-stage · Dual-mode | 24 m³/min @ 22 bar / 26 m³/min @ 18 bar | Cummins 325HP | Quote |
| WPCY325-24/22K | Diesel · Two-stage | 24 m³/min @ 22 bar | Cummins 325HP | Quote |
| WPCY360-27/23K | Diesel · Two-stage | 27 m³/min @ 23 bar | Cummins 360HP | Quote |
| WPCY360-29/22K | Diesel · Two-stage | 29 m³/min @ 22 bar | Cummins 360HP | Quote |
| WPCY360-29/24K | Diesel · Two-stage | 29 m³/min @ 24 bar | Cummins 360HP | Quote |
| WPCY360-31/25-33/18K | Diesel · Two-stage · Dual-mode | 31 m³/min @ 25 bar / 33 m³/min @ 18 bar | Cummins 360HP | Quote |
| WPCY360-31/25K | Diesel · Two-stage | 31 m³/min @ 25 bar | Cummins 360HP | Quote |
| WPCY400-31/25 | Diesel · Two-stage | 31 m³/min @ 25 bar | Yuchai 400HP | Quote |
| WPCY400-31/25-33/18 | Diesel · Two-stage · Dual-mode | 31 m³/min @ 25 bar / 33 m³/min @ 18 bar | Yuchai 400HP | Quote |
| WPCY420-33/26 | Diesel · Two-stage | 33 m³/min @ 26 bar | Yuchai 420HP | Quote |
| WPCY430-34/26-36/18K | Diesel · Two-stage · Dual-mode | 34 m³/min @ 26 bar / 36 m³/min @ 18 bar | Cummins 430HP | Quote |
| WPCY550-35/34-38/25K | Diesel · Two-stage · Dual-mode | 35 m³/min @ 34 bar / 38 m³/min @ 25 bar | Cummins 550HP | Quote |
| WPCY550-36/30-38/20K | Diesel · Two-stage · Dual-mode | 36 m³/min @ 30 bar / 38 m³/min @ 20 bar | Cummins 550HP | Quote |
| WPCY755-38/35-40/30K | Diesel · Two-stage · Dual-mode | 38 m³/min @ 35 bar / 40 m³/min @ 30 bar | Cummins 755HP | Quote |
| WPCY755-40/30-43/20K | Diesel · Two-stage · Dual-mode | 40 m³/min @ 30 bar / 43 m³/min @ 20 bar | Cummins 755HP | Quote |
| WPCY220-20/10-22/8 | Diesel · Two-stage · Dual-mode | 20 m³/min @ 10 bar / 22 m³/min @ 8 bar | Cummins 220HP | Quote |
| WPCY220-20/10-22/8K | Diesel · Two-stage · Dual-mode | 20 m³/min @ 10 bar / 22 m³/min @ 8 bar | Yuchai 220HP | Quote |
| WPCY260-26/10 | Diesel · Two-stage | 26 m³/min @ 10 bar | Yuchai 260HP | Quote |
| WPCY260-26/10K | Diesel · Two-stage | 26 m³/min @ 10 bar | Cummins 260HP | Quote |
| WPCY360-33/10K | Diesel · Two-stage | 33 m³/min @ 10 bar | Cummins 360HP | Quote |
| WPYX412B-1 | Separated DTH drill rig | Ø90-115 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX416T-1 | Separated DTH drill rig | Ø90-115 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX420B-1 | Separated DTH drill rig | Ø90-127 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX420TA-1 | Separated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX425-1 | Separated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX430-1 | Separated DTH drill rig | Ø115-152 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX431 | Separated DTH drill rig | Ø115-152 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX845-1 | Separated DTH drill rig | Ø115-165 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX420STA | Separated anchor drill rig | Ø90-178 mm · 60 m | Yuchai 56-59kW | Quote |
| WPYX425S | Separated anchor drill rig | Ø110-178 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX430S | Separated anchor drill rig | Ø110-350 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX435S | Separated anchor drill rig | Ø110-350 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX420F | Separated solar pile drilling rig | Ø110-350 mm · 10 m | Yuchai 70-74kW | Quote |
| WPYX420TF | Separated solar pile drilling rig | Ø110-250 mm · 10 m | Yuchai 70-74kW | Quote |
| WPYX430TF | Separated solar pile drilling rig | Ø110-350 mm · 10 m | Yuchai 70-74kW | Quote |
| WPYX430GF | Separated solar pile drilling rig | Ø110-350 mm · 10 m | Yuchai 70-74kW | Quote |
| WPYX-SJ400 | Separated water well drill rig | Ø110-250 mm · 300 m | Cummins 93kW | Quote |
| WPYX-SJ450 | Separated water well drill rig | Ø110-350 mm · 300 m | Cummins 93kW | Quote |
| WPYX421TA | Integrated DTH drill rig | Ø90-127 mm · 21 m | Yuchai 162kW | Quote |
| WPYX421H | Integrated, auto rod changer DTH drill rig | Ø90-127 mm · 21 m | Yuchai 162kW | Quote |
| WPYX452T | Integrated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 191kW | Quote |
| WPYX452H | Integrated, auto rod changer DTH drill rig | Ø90-130 mm · 24 m | Yuchai 191kW | Quote |
| WPYX453TC | Integrated, auto rod changer DTH drill rig | Ø90-138 mm · 28 m | Yuchai 221-228kW | Quote |
| WPYX454T | Integrated, auto rod changer DTH drill rig | Ø115-152 mm · 25 m | Cummins 264kW | Quote |
| WPYX454H | Integrated, auto rod changer DTH drill rig | Ø115-152 mm · 25 m | Cummins 264kW | Quote |
| WPYX454G | Integrated, auto rod changer solar pile drilling rig | Ø152-250 mm · 20 m | Cummins 316kW | Quote |
| WPYX660 | Integrated, auto rod changer top hammer drill rig | Ø76-115 mm · 25 m | Cummins 179kW | Quote |
| WPYX650 | Integrated, auto rod changer top hammer drill rig | Ø64-89 mm · 17 m | Cummins 119kW | Quote |
| WP-M35C | Medium-pressure DTH hammer | Ø90-105 mm · 7-18 bar | — | Quote |
| WP-M35R | Medium-pressure DTH hammer | Ø90-105 mm · 7-18 bar | — | Quote |
| WP-M35W | Medium-pressure DTH hammer | Ø90-105 mm · 7-18 bar | — | Quote |
| WP-H25 | High-pressure DTH hammer | Ø76-90 mm · 10-20 bar | — | Quote |
| WP-H35 | High-pressure DTH hammer | Ø90-105 mm · 10-25 bar | — | Quote |
| WP-H35G | High-pressure DTH hammer | Ø90-105 mm · 10-25 bar | — | Quote |
| WP-H45 | High-pressure DTH hammer | Ø105-130 mm · 15-30 bar | — | Quote |
| WP-H45K | High-pressure DTH hammer, fast type | Ø110-130 mm · 15-30 bar | — | Quote |
| WP-H45GW | High-pressure DTH hammer | Ø115-135 mm · 15-30 bar | — | Quote |
| WP-H45GY | High-pressure DTH hammer | Ø115-135 mm · 15-30 bar | — | Quote |
| WP-H55 | High-pressure DTH hammer | Ø130-152 mm · 15-30 bar | — | Quote |
| WP-H55K | High-pressure DTH hammer, fast type | Ø135-152 mm · 15-30 bar | — | Quote |
| WP-H55GW | High-pressure DTH hammer | Ø135-152 mm · 15-30 bar | — | Quote |
| WP-H55GY | High-pressure DTH hammer | Ø135-152 mm · 15-30 bar | — | Quote |
| WP-H65 | High-pressure DTH hammer | Ø152-190 mm · 15-30 bar | — | Quote |
| WP-H65F | High-pressure DTH hammer, no inner cylinder | Ø165-190 mm · 15-30 bar | — | Quote |
| WP-H65GM | High-pressure DTH hammer | Ø165-190 mm · 15-30 bar | — | Quote |
| WP-H65GR | High-pressure DTH hammer | Ø165-190 mm · 15-30 bar | — | Quote |
| WP-H75K | High-pressure DTH hammer, fast type | Ø178-203 mm · 15-30 bar | — | Quote |
| WP-H85 | High-pressure DTH hammer | Ø195-254 mm · 15-35 bar | — | Quote |
| WP-H85KD | High-pressure DTH hammer, fast type | Ø195-254 mm · 15-35 bar | — | Quote |
| WP-H85KY | High-pressure DTH hammer, fast type | Ø195-254 mm · 15-35 bar | — | Quote |
| WP-H85GD | High-pressure DTH hammer | Ø195-254 mm · 15-35 bar | — | Quote |
| WP-H85GR | High-pressure DTH hammer | Ø195-254 mm · 15-35 bar | — | Quote |
| WP-H100 | High-pressure DTH hammer | Ø254-305 mm · 15-35 bar | — | Quote |
| WP-H100G | High-pressure DTH hammer | Ø254-305 mm · 15-35 bar | — | Quote |
| WP-H125 | High-pressure DTH hammer | Ø305-400 mm · 15-35 bar | — | Quote |
| WP-H125KY | High-pressure DTH hammer, fast type | Ø305-400 mm · 15-35 bar | — | Quote |
| WP-H125KR | High-pressure DTH hammer, fast type | Ø305-400 mm · 15-35 bar | — | Quote |
| WP-H150K | High-pressure DTH hammer, fast type | Ø350-450 mm · 15-35 bar | — | Quote |
| WP-H180 | High-pressure DTH hammer, 18 in | Ø450-600 mm · 15-35 bar | — | Quote |
| WP-DP60-2M | DTH drill pipe | Ø60 mm × 2 m | — | Quote |
| WP-DP60-3M | DTH drill pipe | Ø60 mm × 3 m | — | Quote |
| WP-DP76-2M | DTH drill pipe | Ø76 mm × 2 m | — | Quote |
| WP-DP76-3M | DTH drill pipe | Ø76 mm × 3 m | — | Quote |
| WP-DP89-2M | DTH drill pipe | Ø89 mm × 2 m | — | Quote |
| WP-DP89-3M | DTH drill pipe | Ø89 mm × 3 m | — | Quote |
No model matches these filters. Reset the filters or tell us your hole size and depth.
Drill pipes are matched to the bit: Ø90–105 mm bits use Ø60 pipe, Ø115–130 mm use Ø76, Ø138–152 mm use Ø89. 2 m and 3 m rods.
Factory
Built and checked before it ships
Photo coming soon
Photo coming soon
Photo coming soon
30,000 m² production base
Drill rigs, compressors and DTH tools produced and stocked at one base.
ISO 9001 quality system
Quality management to ISO 9001. CE compliance documents available for compressors.
Stock ready to ship
Smart warehouse and a flexible production line keep common models and spare parts in stock.
Core technology
CompressorsLarge-rotor screw air endEngine and motor matchingMulti-stage air filtrationHigh-margin coolingCold-start systemSmart control and diagnostics
Drill rigsAutomatic rod changerDust collectionBuilt-in two-stage compressorSide-shift rotary head35° climbing and track oscillation
DTH toolsValveless air distributionBits without foot valveFast and no-inner-cylinder hammersFull 3–18 in rangeAPI standard threads
Cases
Proven on site
Blast-hole drilling at a high-altitude open-pit mine
- Challenge
- Thin air at altitude cut the delivered air flow, and desert dust clogged filters within days.
- Configuration
- Compressor sized up by the altitude factor, turbocharged engine, larger cooler and the desert filter kit. Operation and maintenance training in the local language.
- Result
- Stable drilling air on the bench, with longer filter change intervals.
- Recommended rig and tools
Ground-source heat-pump boreholes for a residential developer
- Challenge
- Deep, narrow boreholes in rock with water inflow, on tight residential sites.
- Configuration
- Rated pressure recalculated for hole depth and water column back-pressure, with a margin for changing inflow.
- Result
- Boreholes completed to design depth without stalls from low air pressure.
- Recommended rig and tools
Village water wells in East African bedrock
- Site conditions
- Bedrock aquifers in dry regions, wells 150–250 m deep with heavy water inflow; scattered sites and long moves.
- Package
- Why this setup
- Each 10 m of water adds about 1 bar of back-pressure, so deep wells use the 34 bar setting. The self-propelled rig plus one diesel compressor works independently.
Bench blast holes at a West African open-pit gold mine
- Site conditions
- Heat and laterite dust, holes Ø115–138 mm and up to 21 m, multi-shift operation.
- Package
- Why this setup
- A dual-mode compressor handles drilling and hole cleaning; high-margin cooling for the heat, with an optional desert filter kit.
Dam grouting and anchoring at a Himalayan hydropower site
- Site conditions
- Deep valleys where diesel travels a long way; anchor holes 30–60 m, work inside caverns.
- Package
- Why this setup
- Where the site has grid power, an electric compressor needs no fuel supply and leaves no exhaust in the caverns.
Aggregate quarry bench blasting for infrastructure
- Site conditions
- Infrastructure drives aggregate demand; granite and limestone benches, holes Ø115–138 mm.
- Package
- Built into the rig · 22bar 18m³/min
- Why this setup
- An integrated rig with built-in compressor, dust collection and rod changer is the usual step up from separated rigs.
Pile holes in rock at a high-plateau solar plant
- Site conditions
- Rock and gravel where pile drivers stop; holes Ø171–203 mm, up to 10 m, many pile positions.
- Package
- Why this setup
- Drill first, then set the pile. The rig takes a DTH hammer or an auger, for both rock and soil.
Typical solutions describe common local conditions to explain how we configure a package. They are not specific customer projects; your package is sized to your hole size, depth, rock and altitude.
Contact
Tell us the hole, we will send the package
Hole diameter, depth, rock type and altitude are enough to start. An engineer replies within 24 hours.
Emailvictorpowercompressor@gmail.com
Phone / WhatsApp+86 139 6701 6601
WeChat18268965559
AddressQuzhou Victor Power Machinery Co., Ltd.
2nd Floor, No.215 Shiji Avenue, Xinxin Sub-district, Kecheng District, Quzhou City, Zhejiang Province, China
2nd Floor, No.215 Shiji Avenue, Xinxin Sub-district, Kecheng District, Quzhou City, Zhejiang Province, China
